数控车床国际象棋图纸（数控车床国际象棋，如何用机械工艺玩转智慧游戏）

1、奖杯

程序：

o0001;

g99g97g40;

t0101;

m03s800;

g00z2.0;

x38.0;

g73u17r8;

g73p1q2u0.5w0.0f0.3;

n1g01x1.32f0.1;

z0.0;

x8.64z-10.99;

g02x7.91z-14.39r2.35f0.1;

g03x18.53z-16.58r5.06f0.1;

x30.98z-19.95r8.04;

x33.31z-22.23r1.62;

g02x32.41z-24.11r2.96;

g03x16.37z-54.96r46.42;

g02x17.29z-57.44r1.55;

g03x17.13z-64.32r4;

g02x14.49z-71.95r29.59;

x11.24z-77.9r18.02;

g03x19.24z-91.06r72.07;

g01x27.09;

g03x29.67z-96.78r7.19;

x33.81z-97.61r1.27;

g01x33.81z-105.36;

n2x38.0;

g70p1q2;

g00x100.0;

z100.0;

m05;

m30;

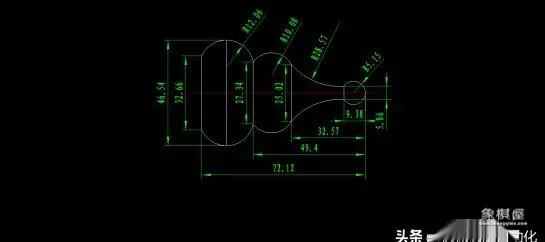

2、葫芦

程序:

o0001

g99g97g40

m03s500

t0101

g00 z2.0

x52.0

g73 u25 r12

g73 p1 q2 u1.5 w0.5 f0.3

n1 g01 x0.0 f0.1

z0.0

g03 x5.86 z-9.38 r5.15 f0.1

g02 x25.02 z-32.57 r28.57

g03 x27.34z-49.4 r10.08

g03 x32.66 z-72.12r12.06

n2 g01 x52.0

g70 p1 q2

g00 x100.0

z100.0

m05

m30

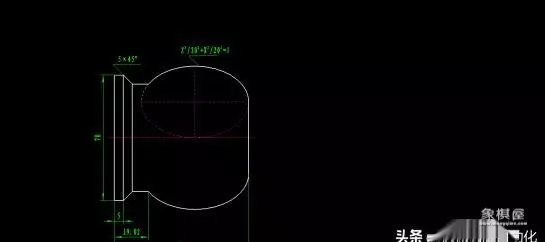

3、椭圆（宏程序）

程序:

o0001

g99g97g40

t0101

m03s500

g00z2.0

x52.0

g01x0.0 f0.1

2=20

4=-24

n10 2*sqrt

g01 x

3-0.1

if goto10

g01 z-60.0

x38.0

x42.0 z-62.0

x52.0

g00 x100.0

z100.0

m05

m30

4、子弹

程序:

o0002

g99g97g40

t0101

m03s500

g00 z2.0

x52.0

g71 u2.0 w0.5

g71 p1 q2 u1.0 w0.0 f0.3

n1 g01 x0.0 f0.1

z0.0

g03 x7.87 z-17.3 r40.0

g01 x8.57

z-23.0

g01 x10.07 z-25.5

x11.35 z-52.8

g02 x11.35 z-54.5 r1.5

g01 z-56.0

n2 x52.0

g70 p1 q2

g00 x100.0

z100.0

m05

m30

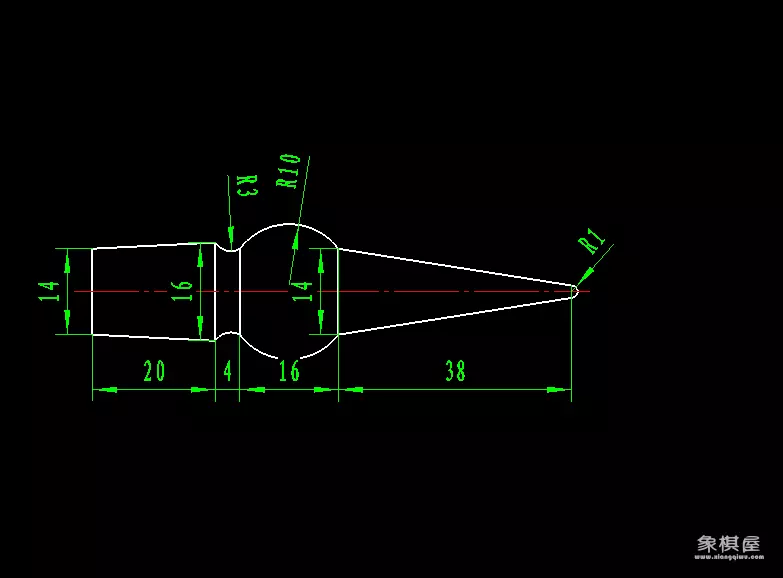

5、锤头

程序：

o0001

g99g97g40

t0101

m03s500

g00z2.0

x22.0

g73u18r17

g73p1q2u0.5w0.0f0.1

n1g01x0.0f0.1

z0.0

g03x2.0z-1.0r1.0f0.3

g01x14.0z-39.0f0.1

g03x14.0z-54.0r10.0f0.3

g02x16.0z-58.0r3.0f0.3

g01x14.0z-78.0

n2x22.0

m00

t0101

m03s800

g00z2.0

x22.0

g70p1q2

g00x100.0

z100.0

m05

n30

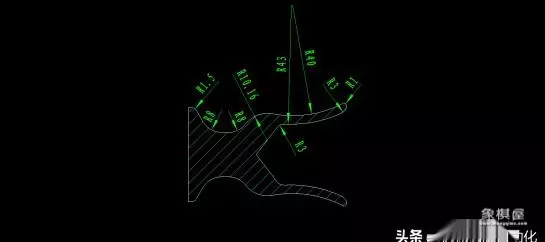

6、酒杯

程序：

酒杯外圆：

o0001

g99g97g40

m03s500

t0101

g00z2.0

x52.0

g73u17r16

g73p1q2u0.5w0.0f0.3

n1g01x34.498f0.1

z0.0

g03x37.183z-0.738r1

g02x29.472z-26.951r43

g03x21.821z-36.625r10.16

g02x16.0z-42.797r8

g01z-45.0

g02x24.z-51.928r8

g01x32.304z-54.325

g03x33.804z-55.624r1.5

g01z-57.124

n2x52.0

m00

m03s800

t0101

g00z2.0

x52.0

g70p1q2

g00x100.0

z100.0

m05

m30

酒杯内轮廓：

o0001

g99g97g40

m03s500

t0404

g00z2.0

x18.0

g71u1.0r0.5

g71p1q2u-0.5w0.0f0.3

n1g01x34.498f0.1

z0.0

g02x29.472z-1.744r3

g02x22.034z-24.182r43

g03x19.066z-27.090r3

n2g01x18.0

m00

m03s800

t0404

g00z2.0

x18.0

g70p1q2

z100.0

m05

m30

宇龙仿真效果演示：

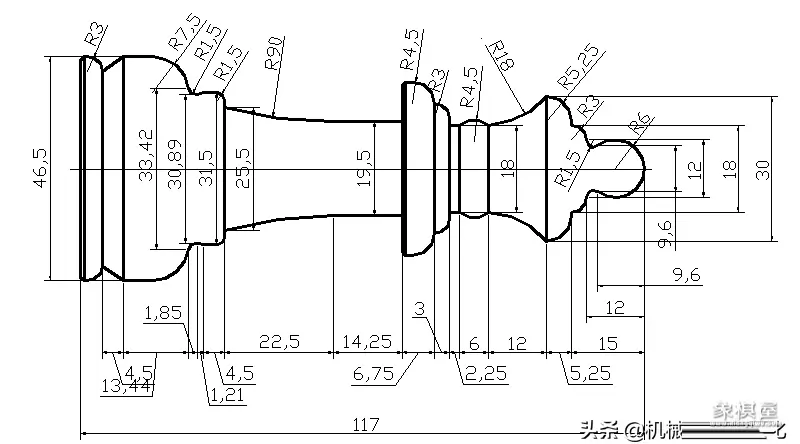

7、国际象棋

程序：

建议用caxa生成

实物展示

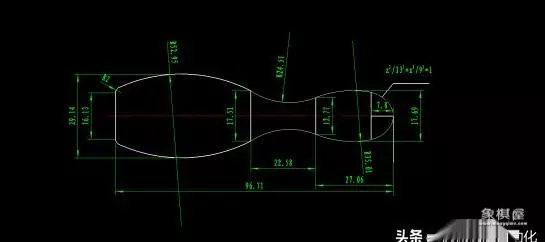

8、保龄球

程序

o0001

g99g97g40

t0101

m03s500

g00z2.0

x38.0

g01x0.0f0.1

z0.0

2=9

4=7.8

n3 2*sqrt

g01 x

3-0.1

if goto3

g03x12.77z-27.06r35.01f0.3

g02x17.51z-49.67r24.51f0.3

g03x20.13z-94.71r52.95f0.3

g03x16.13z-96.71r2f0.3

g00x100.0

z100.0

m05

m30

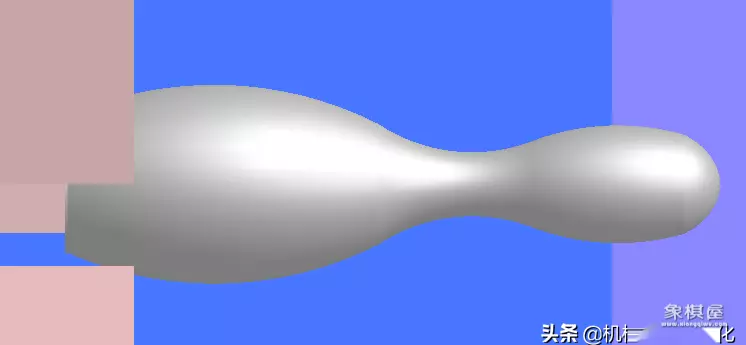

仿真效果演示

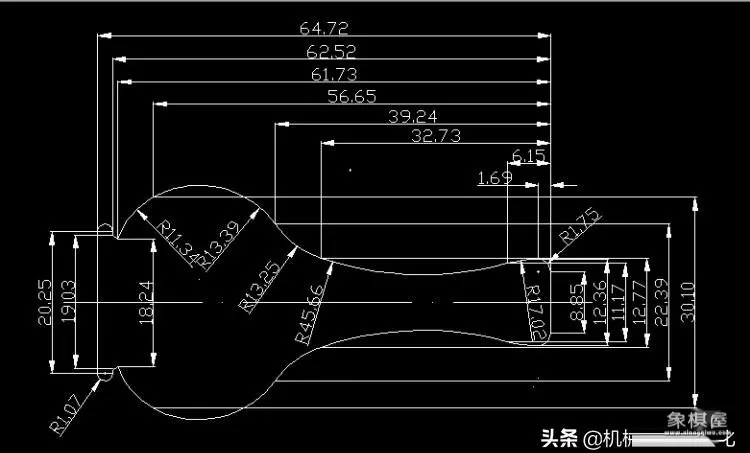

9、花瓶

程序

o0001

t0101

m03 s650;

g00z2.0;

x38;

g73 u12 r10;

g73 p1 q2 u1.0 w0.0f0.2;

n1g01x8.85f0.1;

z0.0;

g03 x12.36 z-1.69 r1.75f0.3;

g03 x11.17 z-6.15 r17.02f0.3;

g02 x12.77 z-32.73 r45.66f0.3;

g02 x22.39 z-39.24 r13.25f0.3;

g03 x30.1 z-56.56 r13.39f0.3;

g03 x18.24 z-61.73 r11.34f0.3;

g01 x19.03 z-62.52f0.1;

x22.5;

g03x23.0z-64.0r1.07;

g01w-5.0

n2g01x40.0f0.1

g70 p1 q2;

g00x100.0;

z100.0;

m05;

m30;

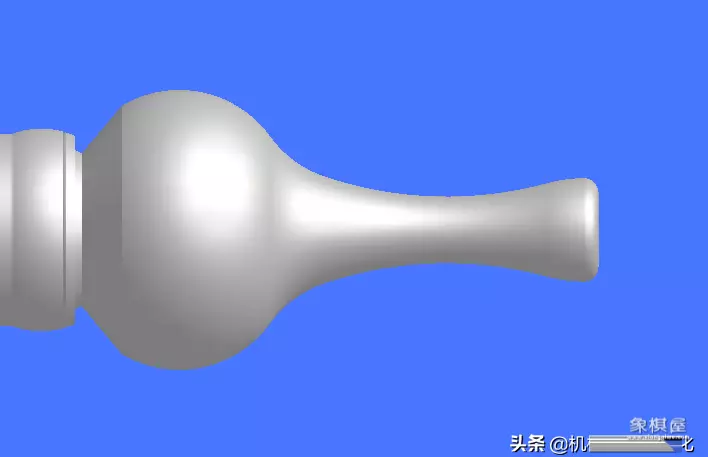

仿真效果演示
